Acetek erasmart uv dtf sticker printer a3 a4 for bottle glass wood
metal printing

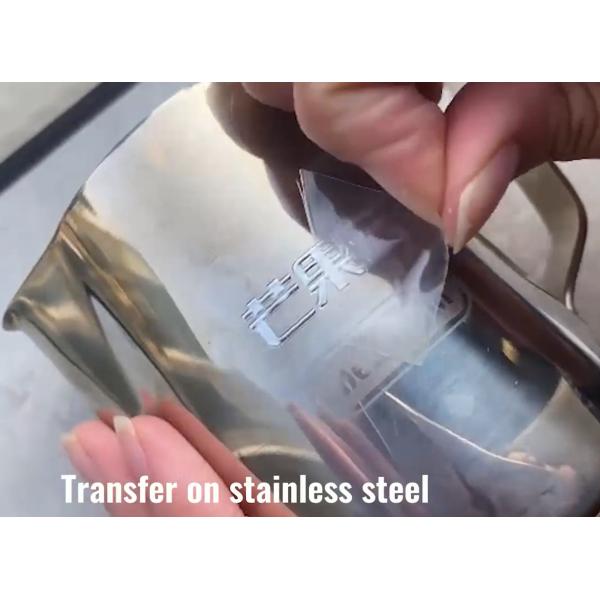

Acetek uv dtf transfer film for glass bottle mugs phone cases. It is
constructed with
new technology, such as the use of two films A and B together, without heating and
powder shaking.It can not only print on flat, wood, ceramic, glass, metal, acrylic
and
other materials, but also print on bent and cylindrical bjects, and output a good 3D texture,
high color fastness and scratch resistance Printing effect.
our advantage of uv dtf sticker printer :
1. industrial-grade UV flatbed printer, Its movement system of X
axis
2. servo brushless, the movement system of Y axis adopts Hiwin
linear guide.
3. matchable for the finishing material, which make carriage
movement more stable,and
the resolution higher.
4. high precision negative pressure system can reduce the
compressed air usage more than
90%, which improvesservice life of air compressor effectively.
paraments of uv dtf printer a3:
| Model | TC3040 | TC4060 |
| Printhead number | 1pc/2pcs/3pcs | 1pc/2pcs/3pcs |
| Max printing height | 15cm | 15cm |
| Max printint size | 40*30CM | 40*60CM |
| Optional printing color | 4color+w+v | 4color+w+v |
| 4color+w | 4color+w |
| 4color+v | 4color+v |
| 4color | 4color |
| Printing speed | Double heads | Single head | Double head | Single head |
| High quality model | 120sec/page | 140sec/page | 60sec/page | 70sec/page |
| Printing material | Glass, Tile, Acrylic, PP, Metal, Wood, Stone, Rotary material. |
| Rip software | Photoprint, Ultra print, Maintop, |
| Picture model | PSD/TIFF/BMP/EPS/JPG |
| Environment | 25-30degree, 50% humidity, clean |
| Computer system | Window XP/ Windows 7/ Window10 |
| Application | Key ring, make up box, Phone cover, Perfume, T shirt, packge box... |
| Machine size | 820*620*520mm | 920*850*550mm |
| Package size | 900*700*600mm | 1220*950*660mm |
| Machine weight | Net. 55kgs / Gross. 80kgs | Net.85kgs / Gross.110kgs |
Application of uv dtf printer a4 :
